In the DiveIno parts post I mentioned that DiveIno has the following three modules:

  1. Screen and microcontroller
  2. Sensor module
  3. Power module

The Assembly - Screen and microcontroller module and the Assembly - Sensor module posts cover the first two modules. This one is about how to assemble the last module on the list; the Power module.

Parts

You will need the followings:

Connections

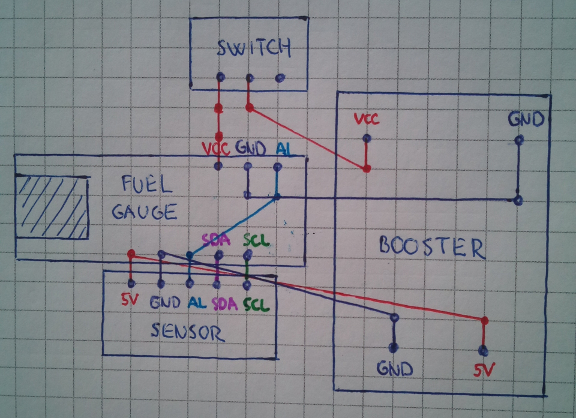

All parts have to be soldered onto the TriPad style Stripboard based on the following connection diagram:

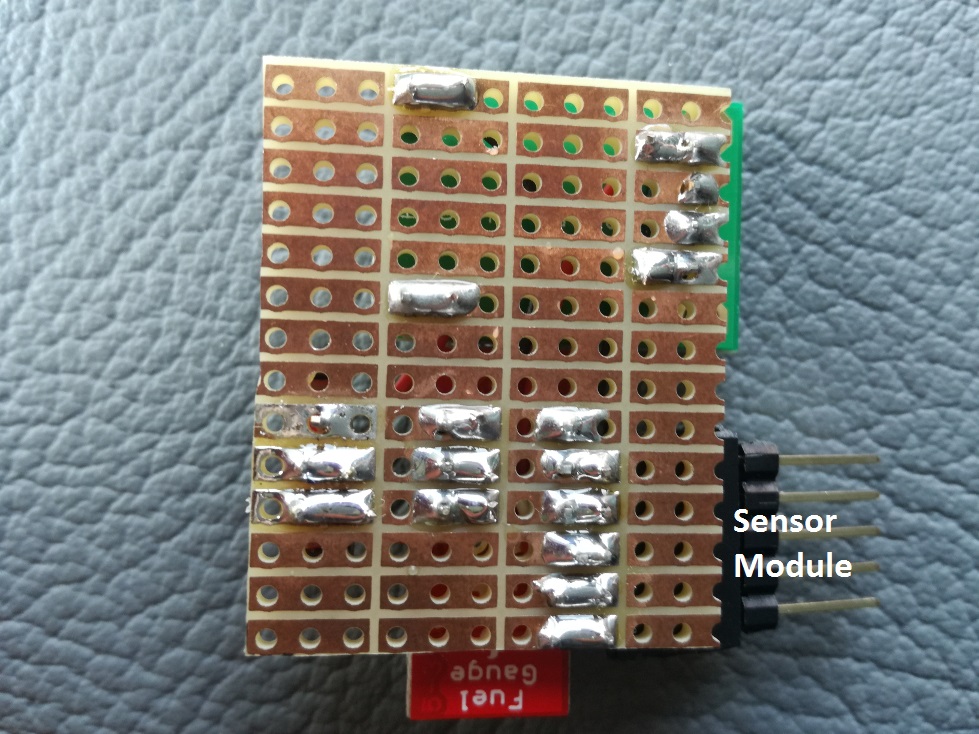

The back side of the module will look like this:

The female headers will connect to the Sensor module. The connection can be made with solid core wires or header pins as it can be seen on the front side view of the module:
